GJFJV GJFJH Indoor Optic Cable 2-96 cores Single Mode G652D Distribution communication

Name: GJFJV GJFJH Indoor Optic Cable 296 cores Single Mode G652D Distribution communication
Brand: EBOCOM
Price: 1 USD

China GJFJV GJFJH Indoor Optic Cable 2-96 cores Single Mode G652D Distribution communication wholesale

Brand Name : EBOCOM

Model Number : GJFJV-12B1

Certification : ISO TLC

Place of Origin : Shandong，China

MOQ : 2000M

Price : EXW ≥2000m $0.16/M ≥5000m $0.14/M

Payment Terms : T/T

Supply Ability : 5000KMS/day

Delivery Time : 5-8 day

Packaging Details : 1. Iron-wooden drum or non-fumigation wooden drum,normal wooden drum. 2. Drum size can be designed,details will calculation for suitable for containers.

Product Name : GJFJV/GJFJH

Jacket : PVC /LSZH

Strength Member : Aramid yarn

Fiber : Single mode/multi mode

Brand : Ebocom or OEM

Contact Now

Description

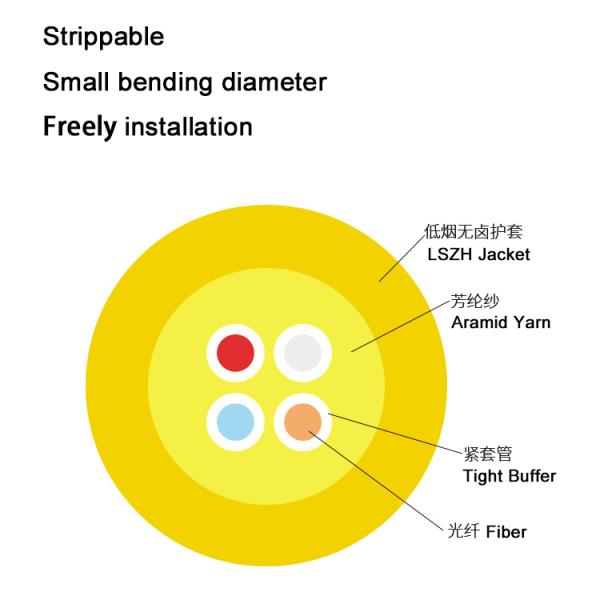

The structure of GJFJV/GJFJH optical cable adopts multiple φ900μm (single mode or multimode) flame retardant tight-buffered optical fibers as optical transmission medium, which are wrapped with a layer of aramid yarn or glass yarn as stress reinforcement unit, and covered with PVC sheath or extruded with a layer of LSZH (low smoke zero halogen) sheath.

Features

Using tight-buffered optical fiber for easy stripping;
Tight-buffered optical fiber has good flame retardant properties;
Double-shaped structure sheath is easy to peel off branches and use;
The outer sheath material has the advantages of corrosion resistance, waterproof, flame retardant, and environmental protection.

Applications

Mainly used for indoor wiring and connections between various indoor communication equipment, between equipment and instruments, and between instruments.

Duplex optical fiber active link jumpers and pigtails;
Indoor shaft level and forced ventilation level wiring;
Interconnection of instruments and communication equipment.

Mechanical Specifications

Cable Model	Outer Diameter (mm)	Weight (kg/km)	Tensile Strength(N)		Crush Resistance(N/100mm)		Bending Radius		Jacket Thickness(mm)
Cable Model	Outer Diameter (mm)	Weight (kg/km)	Long term	Short term	Long term	Short term	Dynamic	Static	Jacket Thickness(mm)
GJFJV-2F	3.6±0.2	12.5	180	440	300	1000	20D	10D	0.45±0.05
GJFJV-4F	4.7±0.2	17.6	180	440	300	1000	20D	10D	0.8±0.1
GJFJV-6F	5.2±0.2	22.8	180	440	300	1000	20D	10D	0.9±0.1
GJFJV-8F	5.8±0.2	26.7	180	440	300	1000	20D	10D	0.9±0.1
GJFJV-12F	6.3±0.2	32.7	180	440	300	1000	20D	10D	0.9±0.1
GJFJV-24F	8.0±0.2	53	200	660	300	1000	20D	10D	1.0±0.1

EBOCOM is the Top 10 optical cable manufacturers a leading communication solution provider in China.
Products include indoor /outdoor/ optical cables/network cables/ accessories, etc.
Focusing on quality, building a laboratory center, providing better quality, and selling well in 23 countries around the world.
