Telecommunication GYXTW 24 Core Single Mode Outdoor Fiber Optic Cable with Steel Wire Strength Member Steel Tape Armoring

Name: Telecommunication GYXTW 24 Core Single Mode Outdoor Fiber Optic Cable with Steel Wire Strength Member Steel Tape Armoring
Brand: Ebocom
Price: 0.02 USD

China Telecommunication GYXTW 24 Core Single Mode Outdoor Fiber Optic Cable with Steel Wire Strength Member Steel Tape Armoring wholesale

Brand Name : Ebocom

Model Number : GYXTW

Certification : ISO

Place of Origin : China

MOQ : 2000M

Price : 0.02 USD per Meter

Payment Terms : L/C, T/T

Supply Ability : 50 KM per Day

Delivery Time : 3-10 days

Packaging Details : Plywood Drum or Custimized

Application : Telecommunication,FTTH FTTB FTTX Network,Aerial/Duct

Fiber type : G652D

Fiber count : 24 Cores

Jacket material : PE

Packing : 2-4km/wooden drum

Strength member : Steel wire/ Steel tape

Oem : accpet

Contact Now

Overview

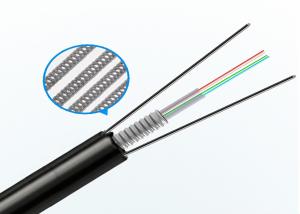

The GYXTW fiber optic cable is a robust and cost-effective solution designed for long-distance outdoor communication systems. With a central loose tube filled with waterproof gel, this cable ensures optimal fiber protection. It is reinforced by dual parallel steel wires and corrugated steel tape, offering high mechanical strength and excellent resistance to environmental hazards.

Perfect for overhead suspension, duct applications, and backbone cabling, this cable combines performance with durability, making it a go-to choice for telecom operators, ISPs, and engineering contractors.

Key Features

Central loose tube design: Stable optical performance and easy mid-span access
Double metallic reinforcement: Parallel steel wires + steel tape for tensile and crush protection
PE outer sheath: High resistance to UV, rain, and extreme temperatures
Water-blocking jelly: Prevents moisture ingress, ensuring long-term reliability
Compact structure: Lightweight and easy to install over long distances
Available in 2 to 24 cores, compliant with international telecom standards

Technical Specifications

Specification	GYXTW Fiber Optic Cable
Fiber Count	2 to 24 cores (Single Mode G652D/G657A1/A2)
Construction	Central loose tube with jelly filling
Strength Member	Two parallel steel wires
Armoring	Corrugated steel tape
Outer Sheath	UV-resistant black PE
Cable Diameter	Approx. 7.0mm to 10.5mm
Tensile Strength	1000N (long-term) / 1500N (short-term)
Crush Resistance	500N/100mm (long-term) / 1000N/100mm (short-term)
Temperature Range	-40°C to +70°C
Installation Method	Aerial / Duct / Outdoor environments
Certifications	IEC 60794 / ISO 9001 / ITU-T standards

Typical Applications

Long-distance fiber backbone networks
FTTH (Fiber to the Home) distribution
Telecom base station connectivity
Industrial park and campus outdoor cabling
Metropolitan area networks (MANs)

Why Choose Us

As a professional fiber optic cable manufacturer, we deliver high-quality GYXTW cables with full customization options including fiber count, sheath color, branding, and packaging. Our products are manufactured under strict ISO-certified processes and have been widely deployed across telecom, energy, and government infrastructure sectors worldwide.
